Rolling Drum shot blasting machine
Technology
Wheelabrator Blasting
Application
Casting / Forging
Investment
Light / Medium
Rolling Drum type shot blasting machine
Rolling Drum Shot Blasting Machine is engineered for precision surface treatment of small to medium castings, heat-treated/forged components, and delicate parts like die-cast aluminum parts or brass plumbing fixtures. Ideal for requiring deburring, oxide removal, or surface hardening.
During operation, the rotating drum shot blaster uniformly mixes and projects abrasives, ensuring 360° coverage. Its abrasion-resistant drum liner and high-performance turbine are reinforced with replaceable manganese protective liners, maximizing durability in high-impact zones.
A unique “triangle” strip configuration inside the drum enables three-dimensional blasting movement, optimizing part rotation for enhanced surface finish and consistent processing results. This barrel-type shot blasting machine is ideal for intricate geometries.
Equipped with an automated skip loader and conveyor unloading system, it streamlines workflow for high-volume production, reducing manual handling while boosting industrial shot blasting efficiency.
- PLC-controlled automatic system featuring loading and unloading, batch cleaning, and reduced labor costs.
- Consistently delivers high-quality finishing surfaces.
- Ideal for solid parts that are resistant to collision during blasting.
- Environmentally friendly with zero pollution.

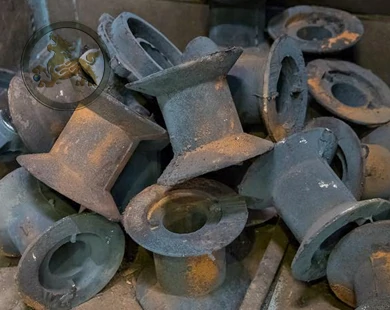

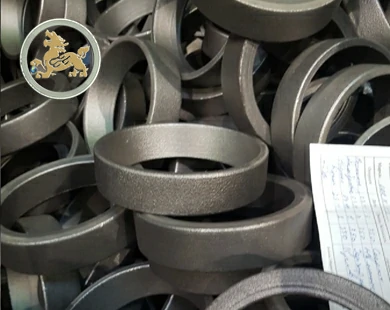

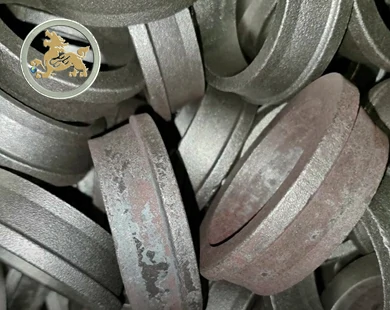

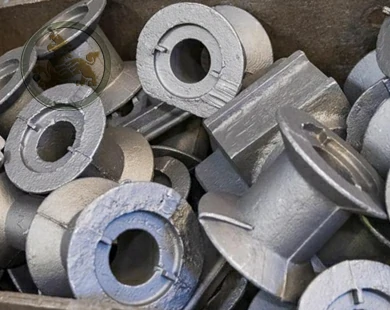

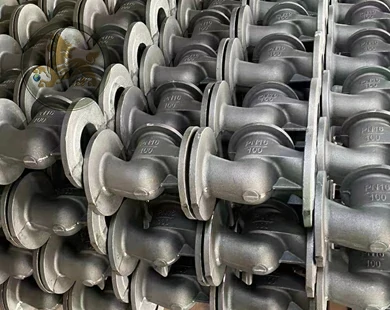

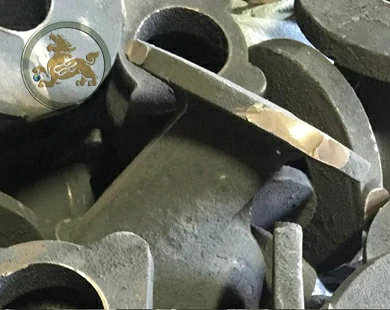

- Foundry: Sand elimination, burr removal, scale stripping, and corrosion extraction for cast components (ductile/nodular iron, gray iron castings).
- Forge: Burr elimination, microstructure homogenization, and temper scale eradication for forged surfaces.
- Aluminum die-casting: Surface refinement of die-cast aluminum parts.
- Customized-made: Tailored treatments for corrosion, polymer residues, granular contaminants, or unique surface requirements.
- Process: Tumble blasting ensures uniform finishing & efficient processing;
- Method: Continuous drum for wheelabrator with loading/unloading system;
- Surface finishing: Debris Removal, Corrosion Treatment, Paint Stripping, and Rust & Thermal Scale Elimination;
- Design: Standard & customised option is available as per requirement;
- Lead Time: 3 to 4 weeks;
- Investment: Light / Medium;
parameter of Drum Shot Blasting Machine:
| Model | RD-1080B | RD-1310B |
|---|---|---|
|
Diameter*Height |
∮1000*800mm |
∮1300x1100mm |
|
Effective volume |
0.1m³ |
0.3m³ |
|
Productivity |
600-1500kg/h |
2000-3500kg/h |
|
Blasting capacity |
1*120kg/min |
1*180kg/min |
Detailed technical of Drum shot blasting machine
Airless Shot Turbines:
High-Performance Shot Turbines: Adjustable RPM range (2200–3800) to maximize abrasive velocity, paired with an optional electronic inverter speed control for precision adjustment and energy efficiency.
Rolling drum:
Rotating drum: Continuous loading system enables three-dimensional blasting movement, optimizing part rotation for enhanced surface finish and consistent processing results.
Shot blasting room:
Reinforced Cabinet Design: Built with a 12mm wear-resistant steel cabinet, welded reinforced construction, and 65 manganese-steel liners for unmatched abrasion resistance and long-term durability.
Separator:
Separator: integrates DISA and Pangborn technologies, efficiently sorting abrasives into three distinct classes with a remarkable 99.5% efficiency rate, ensuring high-performance separation in industrial applications.
Electrical control system:
PLC: operates across all voltage ranges, features comprehensive motor overload protection, and integrates an HMI for real-time monitoring of all components, ensuring operational safety and efficiency.
Elevator:
Elevator: lifts abrasive materials to the separator via a durable foundry-cast bucket, while an integrated tension device ensures belt stability, effectively preventing slippage during operation
Dust collect system:
Dust collector: employs a high-efficiency cartridge filtration system, achieving 99.9% effectiveness, with easily replaceable cartridges to streamline maintenance and ensure uninterrupted, hassle-free operational performance.
FAQs
What is a drum shot blasting machine?
How does a drum shot blasting machine work?
The Rolling drum shot blast machine is manual or automatic mode?
What are applications of drum type shot blasting machine?
Surface Finishing solutions Projects
// Rolling drum with tumble blasting designs for the foundry and forge industries //
