Home / Shot Blasting machine / Roller conveyor shot blasting machine
// Shot Blasting Machine
Roller conveyor Shot Blasting Machine
Technology
Wheelabrator Blasting
Application
Beam / Plate / Marble
Investment
Medium / Heavy

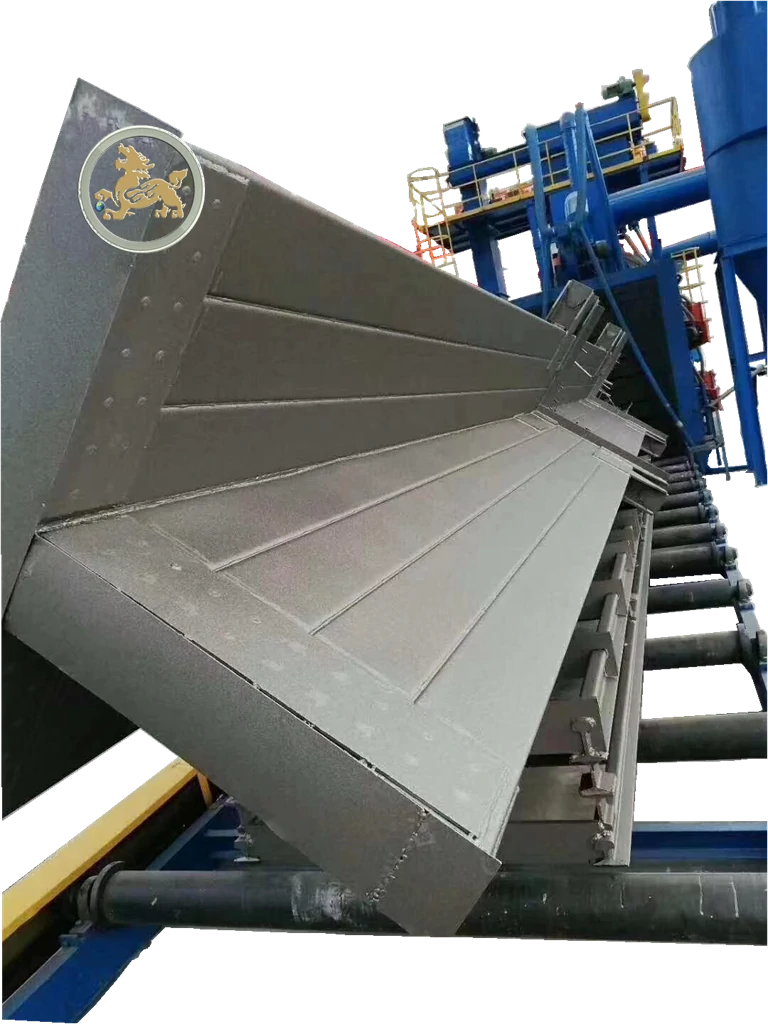

Roller conveyor shot blasting machine
Automatic roller conveyor shot blasting machine, utilized in construction and industrial sectors, clean and strengthen large steel structures by removing rust, oxide scale, and contaminants. Steel enters via adjustable-speed rollers into a chamber where high-velocity projectiles blast surfaces from multiple angles, enhancing paint adhesion, surface smoothness, and durability. Workpieces are transported via entry/exit roller conveyors. Spent projectiles and debris are swept into a funnel via airflow, separated by a screw system. Pure projectiles are recycled, while dust is filtered through a purification system, ensuring clean air emission and particulate collection, minimizing environmental impact.
I-track Hanger shot blasting machine
Design for the light load and low-efficiency work.
Main model of Industrial roller shot blasting machine
- The Automatic PLC control system optimizes labor cost savings while ensuring perfect finishing consistency in surface cleaning quality.
- Its continuous feed capability efficiently processes beams, plates, and profiles, supported by robust wheel turbines crafted from high-chrome wearing-resistant material with multi-grade projectile capacity.
- The compact structure simplifies operation and installation, minimizes maintenance costs, and upholds its high market reputation through reliability and user-friendliness.
- Additionally, the system operates with no pollution, aligning with environmental protection standards for sustainable industrial practices.
- Marble, Blocks, Bricks, Tiles, Kerbstones, Slabs & Cement: Texture stone surfaces, improve roughness, provide anti-skid properties, and offer decorative effects.
- Pipes: Clean surfaces for painting, coating, drilling, welding, etc,.
- Plates: Finish sheet surfaces for painting, coating, cutting, welding, and other processes.
- Aluminum parts: Surface refinement of die-cast aluminum parts.
- Wheel rims: Surface blasting finishing uniform.
- Metal construction works: Post-fabrication cleansing (welds, cuts, drillings); stain and oxidation deposit removal.
- Customized-made: Tailored treatments for corrosion, polymer residues, granular contaminants, or unique surface requirements.
- Process: 360° cover shot-blasting ensures uniform finishing & efficient processing;
- Method: Automated roller conveying for wheelabrator;
- Surface finishing: Debris Removal, Corrosion Treatment, Paint Stripping, and Rust & Thermal Scale Elimination;
- Design: Standard & customised option is available as per requirement;
- Lead Time: 6 to 8 weeks;
- Investment: Medium/Heavy;
parameter of Rollers Shot Blasting Machine:
| Model | RC-1000 | RC-1500 | RC-2000 |
|---|---|---|---|
|
Workable Width |
1000mm |
1500mm |
2000mm |
|
Blasting capacity |
4*250kg/min |
4*250kg/min |
6*250kg/min |
|
Total power |
78.5KW |
115KW |
155.5KW |
Detailed technical for automatic shot blasting machine
Industrial Shot Turbines:
Belt-driven Shot Turbines: Adjustable RPM range (2200–3800) to maximize abrasive projectile velocity, paired with an optional electronic inverter speed control for precision adjustment and energy efficiency.
Roller conveyor:
Roller conveying: The conveyor rollers feature manganese liners to prolong their service life, and bearing is specifically designed with a labyrinth shape to prevent leakage of the steel media.
Shot blasting room:
Reinforced Cabinet Design: Built with a 12mm wear-resistant steel cabinet, welded reinforced construction, and 65 manganese-steel liners for unmatched abrasion resistance and long-term durability.
Separator:
Separator: integrates DISA and Pangborn technologies, efficiently sorting abrasives into three distinct classes with a remarkable 99.5% efficiency rate, ensuring high-performance separation in industrial applications.
Electrical control system:
PLC: operates across all voltage ranges, features comprehensive motor overload protection, and integrates an HMI for real-time monitoring of all components, ensuring operational safety and efficiency.
Elevator:
Elevator: lifts abrasive materials to the separator via a durable foundry-cast bucket, while an integrated tension device ensures belt stability, effectively preventing slippage during operation
Dust collect system:
Dust collector: With a high-efficiency cartridge filtration system, achieving 99.9% effectiveness, easily replaceable cartridges to streamline maintenance & ensure uninterrupted, hassle-free operational performance.
Screw conveyor:
Abrasive conveying: The screw shaft is post-weld treated for coaxiality, while the 16Mn blade employs precision stretching and specialized processing for accurate pitch/dimensions, enhancing lifespan.
FAQs
What is "Roller conveyor shot blasting machine"?
What's roller shot blasting machine price?
What is the function of automatic shot blasting machine?
What types of materials can be processed?
Surface Finishing solutions Projects
// Automatic rollers Shot Blasting Machine designs for the Beam, structure, pipes, plates and aluminum long parts //
