Automatic shot blasting machine for Steel pipe
A pipe shot blasting machine is designed to prepare internal and external surfaces of pipes, tubes, round bars, gas cylinders, and cylindrical components. This tube surface treatment equipment handles diverse diameters and lengths at adjustable transport speeds in a continuous automated process.
Featuring a pass-through design, these industrial shot blasters employ a VFD-controlled inverted blasting system on a conical conveyor or longitudinal-axis roller conveyor, ensuring uniform abrasion and consistent surface finish.
Ideal for high-volume production lines, they operate standalone or integrate seamlessly with systems like automated painting chambers, drying tunnels, and coating application units.
Main model of pipes shot blasting machine
Design by the skew roll for tubes outer surface.
Design for air blasting system for inside pipes surface.
Design for the portable and large diameter pipe’s outer surface.
- The Automatic PLC control system optimizes labor cost savings while ensuring perfect finishing consistency in surface cleaning quality.
- Its continuous feed capability efficiently processes beams, plates, and profiles, supported by robust wheel turbines crafted from high-chrome wearing-resistant material with multi-grade projectile capacity.
- The compact structure simplifies operation and installation, minimizes maintenance costs, and upholds its high market reputation through reliability and user-friendliness.
- Additionally, the system operates with no pollution, aligning with environmental protection standards for sustainable industrial practices.

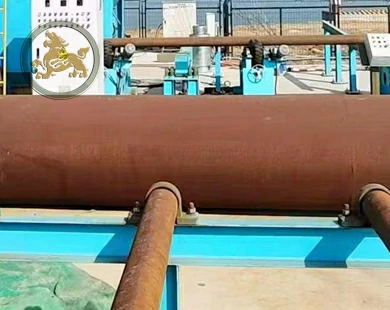

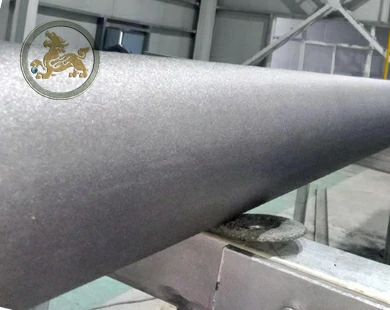

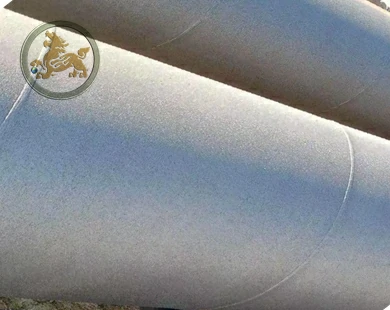

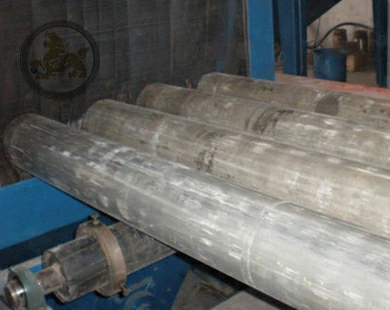

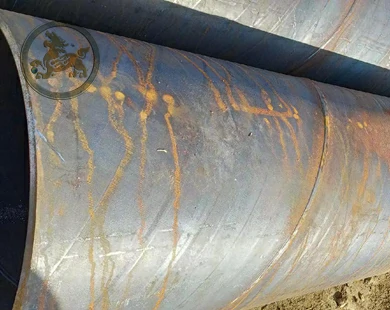

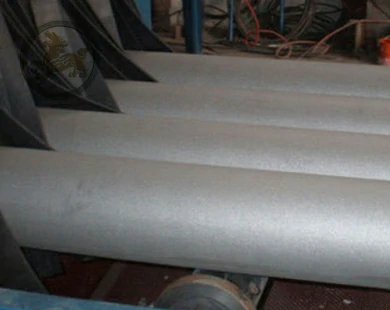

- Pipes: Clean surfaces for painting, coating, drilling, welding, etc,.
- Gas cylinder: Texture smoothing and pre-coating purification for paint/primer readiness.

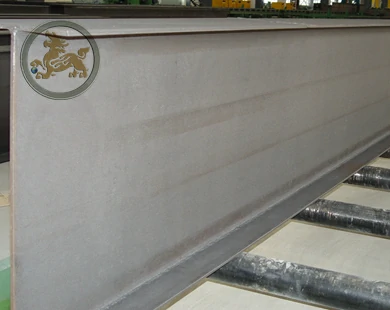

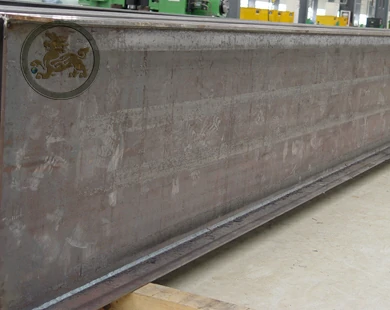

- Bars, Suck rods: Removes dust, rust, and stains prior to repainting or recoating;
- Process: 360° cover shot-blasting ensures uniform finishing & efficient processing;
- Method: Automated roller/skew conveying for wheelabrator;
- Surface finishing: Debris Removal, Corrosion Treatment, Paint Stripping, and Rust & Thermal Scale Elimination;
- Design: Standard & customised option is available as per requirement;
- Lead Time: 6 to 8 weeks;
- Investment: Medium/Heavy;
parameter of Pipes Shot Blasting Machine:
| Model | SP-100 | SP-150 | SP-200 |
|---|---|---|---|
|
Diameter |
∮30-∮100mm |
∮50-∮150mm |
∮50-∮200mm |
|
Shot turbines q’ty |
4*120kgs/min |
4*180kgs/min |
6*180kgs/min |
|
Max.Weight |
600KGS |
800KGS |
1000KGS |
Detailed technical of automatic shot blasting machine

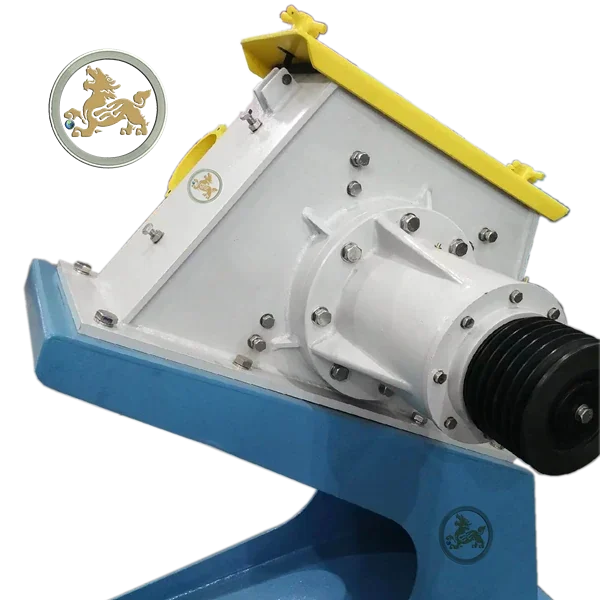

Industrial Shot Turbines:
Belt-driven Shot Turbines: Adjustable RPM range (2200–3800) to maximize abrasive projectile velocity, paired with an optional electronic inverter speed control for precision adjustment and energy efficiency.
Pipe skew roll:
Skew conveying: The conveyor rollers feature manganese liners to prolong their service life, and bearing is specifically designed with a labyrinth shape to prevent leakage of the steel media.
Shot blasting room:

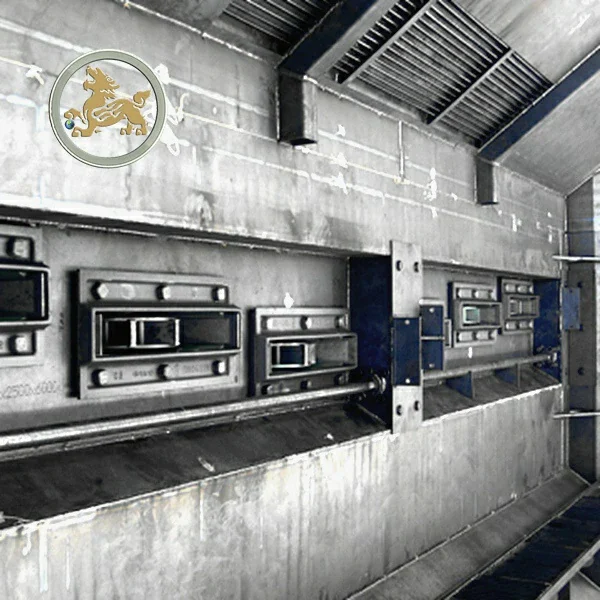

Reinforced Cabinet Design: Built with a 12mm wear-resistant steel cabinet, welded reinforced construction, and 65 manganese-steel liners for unmatched abrasion resistance and long-term durability.
Separator:
Separator: integrates DISA and Pangborn technologies, efficiently sorting abrasives into three distinct classes with a remarkable 99.5% efficiency rate, ensuring high-performance separation in industrial applications.

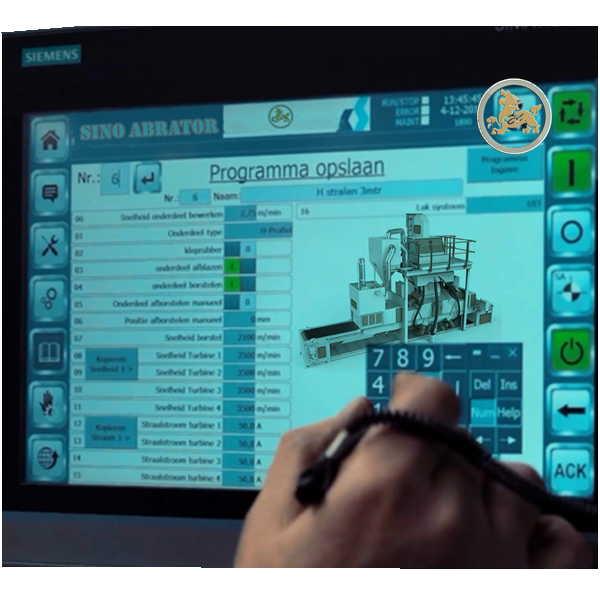

Electrical control system:
PLC: operates across all voltage ranges, features comprehensive motor overload protection, and integrates an HMI for real-time monitoring of all components, ensuring operational safety and efficiency.
Elevator:
Elevator: lifts abrasive materials to the separator via a durable foundry-cast bucket, while an integrated tension device ensures belt stability, effectively preventing slippage during operation

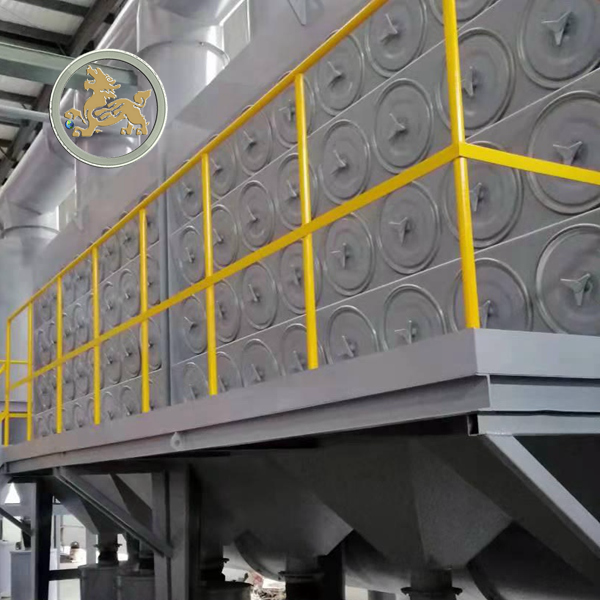

Dust collect system:
Dust collector: With a high-efficiency cartridge filtration system, achieving 99.9% effectiveness, easily replaceable cartridges to streamline maintenance & ensure uninterrupted, hassle-free operational performance.
Screw conveyor:
Abrasive conveying: The screw shaft is post-weld treated for coaxiality, while the 16Mn blade employs precision stretching and specialized processing for accurate pitch/dimensions, enhancing lifespan.
